Overview

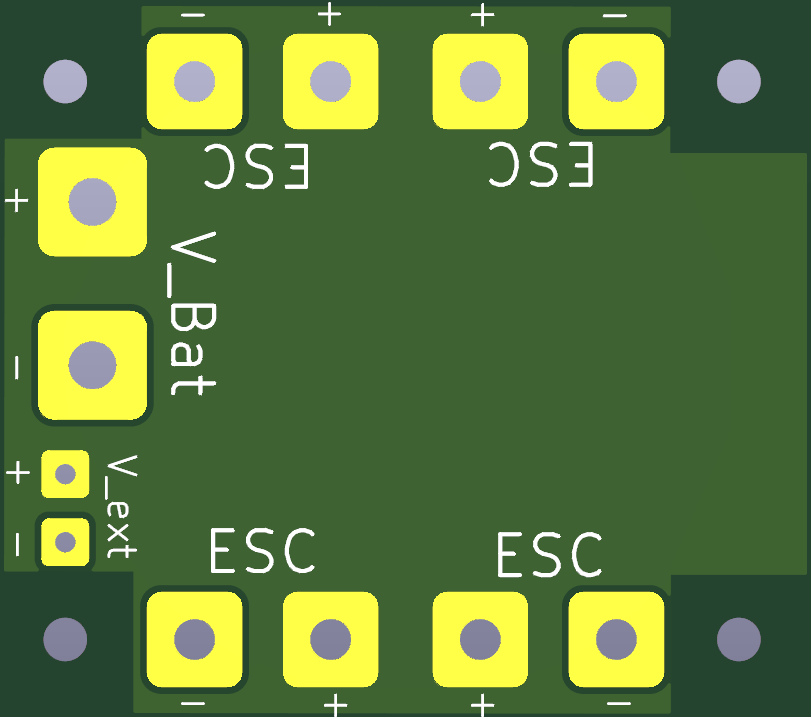

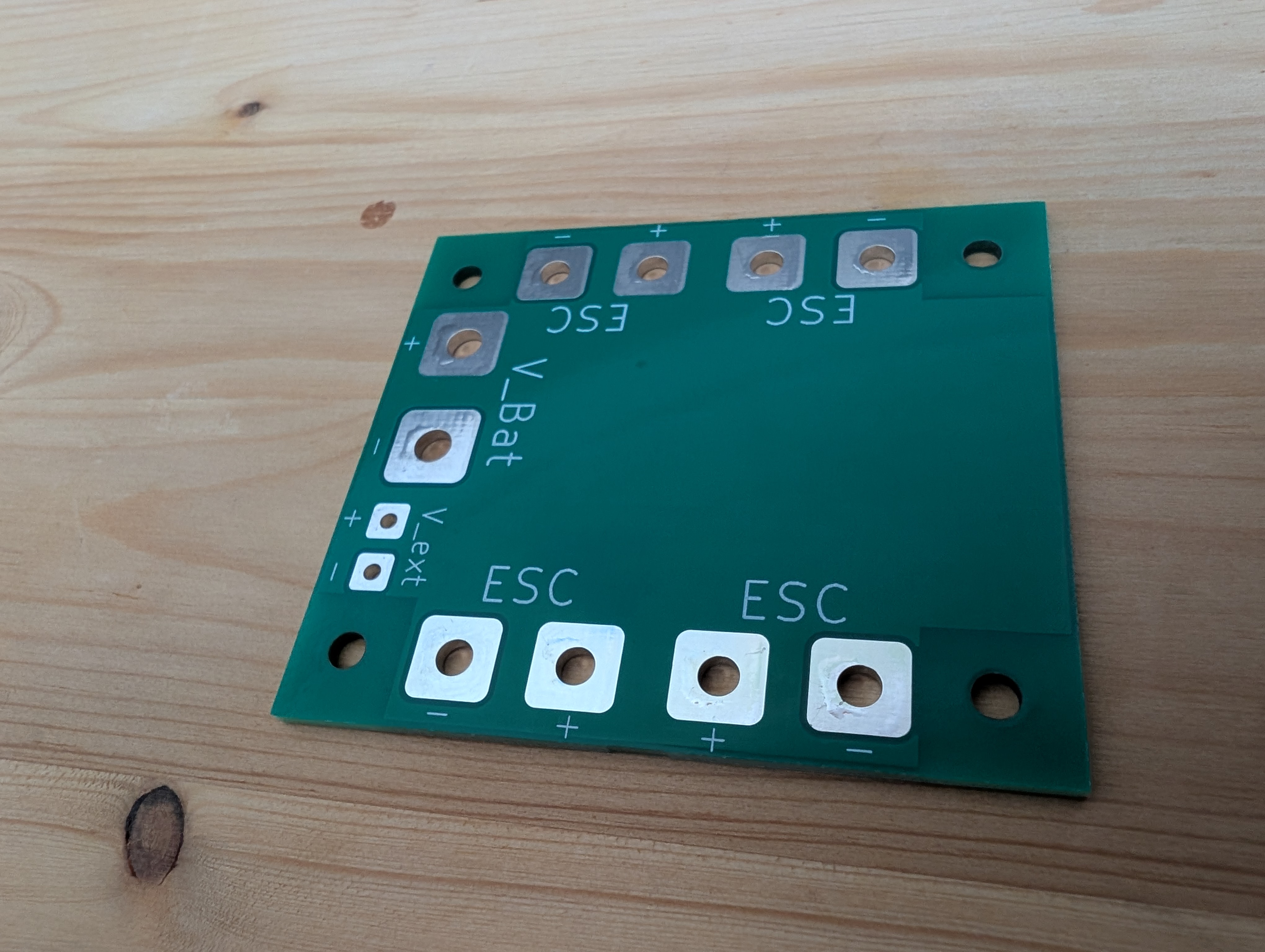

Universal Quadcopter power distribution board.
Ratings
The board can be manufactured with either 1 oz or 2 oz copper pours depending on the intended current load, thermal margin, and production cost target.
Exact rating testing has not been performed yet. However, the 1 oz version seems to work well for 4 x 30 A ESCs in the current setup.
Final current ratings is not yet confirmed through controlled load testing, temperature measurement, and inspection of connector and copper-pour heating.
Connections
- 4 ESC outputs.
- 1 main power input.
- 1 external low-load output.
